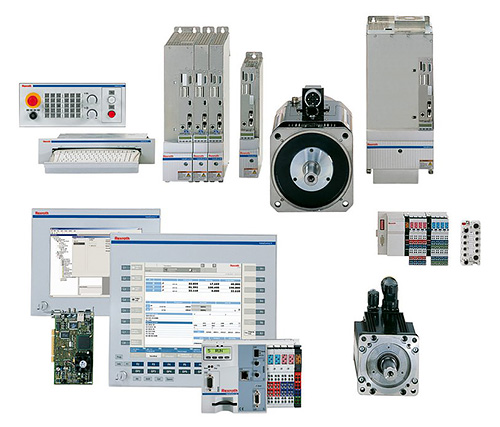

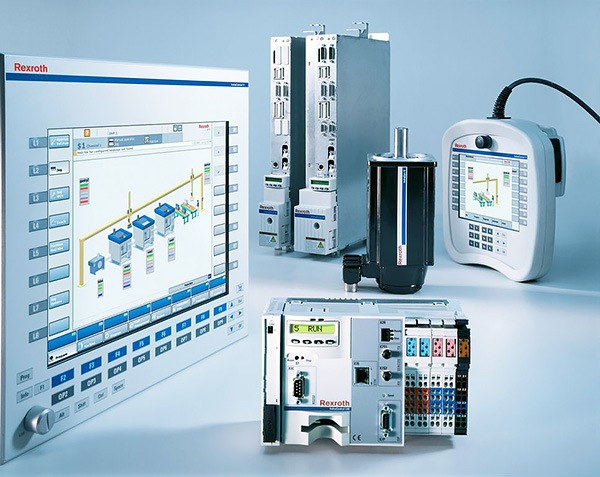

MTX performance
|
MTX advanced
|
|
Machining Technologies
|
|
Turning
|
|
●
|
●
|
|
Milling
|
|
●
|
●
|
|
Drilling
|
|
●
|
●
|
|
Grinding
|
|
●
|
●
|
|
Nibbling, shape cutting
|
|
●
|
●
|
|
Reforming
|
|
●
|
●
|
|
Axis control
|
|
Default number of axes
|
|
8 Default ●
|
8 Default ●
|
|
Max. number of axes
|
|
64 ○
|
64 ○
|
|
Max. number of spindles thereof
|
|
32 ○
|
32 ○
|
|
Default number of independent channels
|
|
3 ●
|
3 ●
|
|
Max. number of independent channels
|
|
12 ○
|
12 ○
|
|
Default number of interpolating axes per channel
|
|
4 ●
|
4 ●
|
|
Max. number of interpolating axes per channel
|
|
8
|
8
|
|
Linear axes
|
|
●
|
●
|
|
Circular axes
|
|
●
|
●
|
|
Endlessly turning rotary axis
|
|
●
|
●
|
|
Hirth axes
|
|
●
|
●
|
|
Spindel/C axis change-over
|
|
●
|
●
|
|
Max. number of gantry groups per channel
|
|
8 ◯ ²) ³) ⁶)
|
8 ◯ ²) ³) ⁶)
|
|
Cross-channel axis transfer
|
|
●
|
●
|
|
Cam
|
|
●
|
●
|
|
Spindle coupling over electr. gears
|
|
◯ ⁷)
|
◯ ⁷)
|
|
Software limit switch
|
|
●
|
●
|
|
Master axis synchronisation
|
|
◯ ¹) ²) ³)
|
◯ ¹) ²) ³)
|
|
Axis-specific jerk limitation
|
|
●
|
●
|
|
Integrated safety technology according to EN ISO 13849-1 Cat. 3 PL e and EN 62061 SIL 2 (safe stop, safe reduced speed)
|
|
▢
|
▢
|
|
Interpolation functions
|
|
Linear interpolation
|
|
●
|
●
|
|
Linear interpolation with/without exact halt before NC block transition
|
|
●
|
●
|
|
Circular interpolation with radius and center-point programming, helical interpolation
|
|
●
|
●
|
|
Circular interpolation with tangental entrance
|
|
●
|
●
|
|
Threading drill without compensating chuck
|
|
●
|
●
|
|
Threading cutter
|
|
●
|
●
|
|
Cylinder surface transformation
|
|
◯ ¹) ⁶)
|
◯ ¹) ⁶)
|
|
C-axis transformation
|
|
◯ ¹)
|
◯ ¹)
|
|
NC block preview, look-ahead
|
|
Max. 1000 blocks ○
|
Max. 1000 blocks ○
|
|
5-axis transformation with TCP programming
|
|
◯ ³)
|
◯ ³)
|
|
Jogging with active transformation
|
|
◯ ³)
|
◯ ³)
|
|
Spline interpolation, C1 + C2, continuous cubic splines, B-splines, NURBS
|
|
◯ ¹) ²) ³)
|
◯ ¹) ²) ³)
|
|
Nanometer resolution
|
|
●
|
●
|
|
Feed function
|
|
Feed in mm/min or inch/min
|
|
●
|
●
|
|
Time programming
|
|
●
|
●
|
|
Feed per rotation
|
|
●
|
●
|
|
Constant cutting speed
|
|
◯ ¹)
|
◯ ¹)
|
|
Travel to dead stop
|
|
●
|
●
|
|
Torque reduction
|
|
●
|
●
|
|
Shifts and Corrections
|
|
Mirroring, scaling, turning
|
|
●
|
●
|
|
Zero shift
|
|
●
|
●
|
|
Corrections and zero shift programmable using CPL
|
|
●
|
●
|
|
Placements (Frames)
|
|
-
|
-
|
|
2D compensation
|
|
●
|
●
|
|
3D milling radius correction
|
|
◯ ³)
|
◯ ³)
|
|
Course correction with level switch
|
|
●
|
●
|
|
Tangential tool guidance
|
|
●
|
●
|
|
Tool maintenance
|
|
Integrated, flexible tool management
|
|
●
|
●
|
|
Configurable tool database
|
|
●
|
●
|
|
Freely definable tool compensation (length, radius, cutting position compensation, user data)
|
|
●
|
●
|
|
Additive tool compensations (D compensations)
|
|
●
|
●
|
|
Access to tool data from the PLC
|
|
●
|
●
|
|
Access to tool data from the CNC
|
|
●
|
●
|
|
CNC programming
|
|
Creation of parts program (DIN ISO 66025, RS 274)
|
|
●
|
●
|
|
High level language programming, CPL (Customer Programming Language)
|
|
●
|
●
|
|
Graphical NC simulation
|
|
◯ ⁴) ⁵)
|
◯ ⁴) ⁵)
|
|
CNC user memory
|
MB
|
512
|
1024
|
|
Static memory
|
MB
|
8
|
16
|
|
Max. size of parts program
|
|
PC hard disk (network file system)
|
PC hard disk (network file system)
|
|
CompactFlash data memory
|
|
●
|
●
|
|
Technology cycles
|
|
Turning
|
|
●
|
●
|
|
Milling
|
|
●
|
●
|
|
Drilling
|
|
●
|
●
|
|
Functions
|
|
Dwell time in seconds
|
|
●
|
●
|
|
Excelleration programming, KV-programming
|
|
●
|
●
|
|
Homing via NC-program
|
|
●
|
●
|
|
Absolute dimention, relative dimention
|
|
●
|
●
|
|
Change-over inch/mm
|
|
●
|
●
|
|
Sensor input, static/flying measurement
|
|
●
|
●
|
|
Read process and drive data through sercos
|
|
●
|
●
|
|
Rounding and milling
|
|
●
|
●
|
|
Corner rounding with splines
|
|
●
|
●
|
|
Laser power controler
|
|
●
|
●
|
|
Digitalisation
|
|
●
|
●
|
|
NC-block specification from PLC
|
|
●
|
●
|
|
Support for control elements
|
|
Configurable operator screens
|
|
■
|
■
|
|
Cycle-header/input support OEM-cycles
|
|
■
|
■
|
|
Block lead/block search run
|
|
●
|
●
|
|
Dry run
|
|
●
|
●
|
|
Departure and NC-block restart on the contour
|
|
●
|
●
|
|
Retrace function: Reversing over the contour
|
|
-
|
-
|
|
PLC programming
|
|
Integrated PLC: IndraLogic
|
|
●
|
●
|
|
Programming languages according to IEC 61131-3 (IL, ID, CFC, ST, SFC, FBD)
|
|
●
|
●
|
|
PLC program memory
|
MB
|
8
|
16
|
|
Number of local/on-board I/Os
|
|
8 / 8 ●
|
8 / 8 ●
|
|
Max. number of local/on-board I/Os
|
|
512 / 512 ○
|
512 / 512 ○
|
|
Number of high-speed inputs/outputs
|
|
8/8 ○
|
8 / 8 ○
|
|
Number of field bus inputs/outputs in bytes
|
|
8,192 / 8,192
|
8,192 / 8,192
|
|
Multitasking
|
|
●
|
●
|
|
Max. number of PLC tasks
|
|
16
|
16
|
|
Diagnosis and start-up tool
|
|
Integrated, cross-system IndraWorks engineering framework
|
|
-
|
●
|
|
Indication and error message in clear text
|
|
●
|
●
|
|
Integrated project planning for drives
|
|
●
|
●
|
|
Drive oszilloscope
|
|
●
|
●
|
|
Integrated PLC project planning
|
|
●
|
●
|
|
Logic analyser
|
|
●
|
●
|
|
Circle form test
|
|
●
|
●
|
|
NC analyzer
|
|
●
|
●
|
|
Action recorder IndraMotion MTX acr
|
|
○
|
○
|
|
Cycle tima analyzer IndraMotion MTX cta
|
|
○
|
○
|
|
Energy analyzer IndraMotion MTX ega
|
|
●
|
●
|
|
Remote condition monitoring system IndraMotion MTX rcm
|
|
●
|
●
|
|
Remote diagnosis I-Remote
|
|
○
|
○
|
|
IndraMotion MTX micro Trainer
|
|
○
|
○
|
|
IndraWorks view 3D
|
|
○
|
○
|
|
IndraWorks machine simulator
|
|
○
|
○
|
|
Open architecture
|
|
Configurable user interface with all standard functions
|
|
●
|
●
|
|
User-specific operator screens
|
|
●
|
●
|
|
Adaption and integration over standardized interfaces (OPC-UA, XML, ActiveX, NET)
|
|
●
|
●
|
